Low Traffic Load

FIRE CURTAINS

>> Example 2

The following examples were visualized using a computer simulation (CFD). In fact, however, the function was also demonstrated in a practical test in the currently probably safest tunnel in Roppen (Austria).

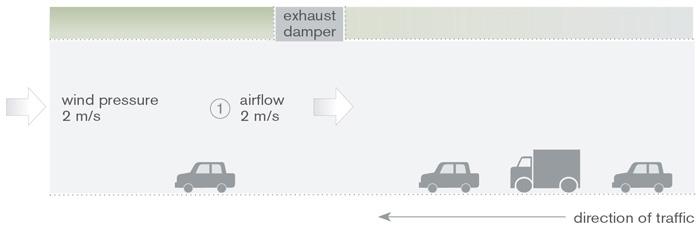

Draft 1: Initial Situation

Under conditions of low traffic load, from the start there is an airflow against the direction of the traffic in the tunnel 1 . Due to the low or absent piston effects of the vehicles, airflow towards the entry portal dominates.

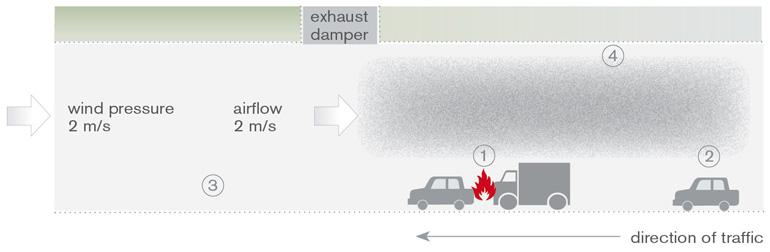

Draft 2: Accident

When fire breaks out due to an accident 1 , the vehicles before the site of the accident come to a halt 2 , those beyond it leave the tunnel 3 . The original direction of the airflow is maintained, blowing the rising smoke towards the stalled vehicles 4 .
